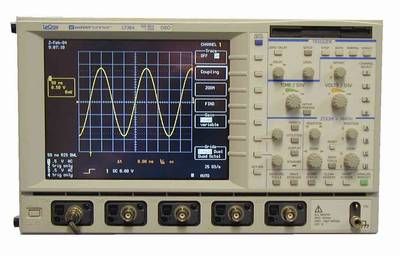

LeCroy LT364
Device from the "Waverunner" series, 4 channels with bandwidth up to 500 MHz, sampling rate 1 GS/s (when using 2 channels), Input impedance 50 Ohm, vertical resolution 8 bit, sensitivity 2 mV to 10 V/div, Main time base and up to 4 zoomed signals can be displayed simultaneously, resolution 5 ps, Trigger modes Normal, Auto, Single and Stop, Auto-Setup, acquisition memory 500 kpts/ch., Display on 8.4" TFT-LC screen, resolution 640x480 dots, internal signal processor 160 MHz PowerPC with 16 MB memory, 4 non-volatile memories and 3.5" FDD, mathematical functions and cursor measurements, GPIB and RS-232 C. DIGITAL OSCILLOSCOPE 500 MHz, 500 MS/s, 4 channels
Product variants:
-
LeCroy LT364 -
LeCroy LT364
