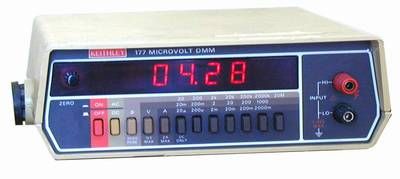

Keithley 177
With 4 1/2 digits and 1 µV, 1 mOhm or 1 nA resolution and an additional analog output, this device is exceptionally well equipped. True RMS measurement for AC voltage with crest factor 3. Measurement ranges 20 mV to 1200 VDC, 200 mV to 1000 VAC, 45 Hz - 20 kHz, current measurement DC and AC with true RMS measurement 20 µA - 2 A as well as resistance measurement 20 Ohm to 20 MOhm. Basic accuracy +-0.04%. DIGITAL VOLTMETER 4 1/2 digits
Product variants:
-
Keithley 177
