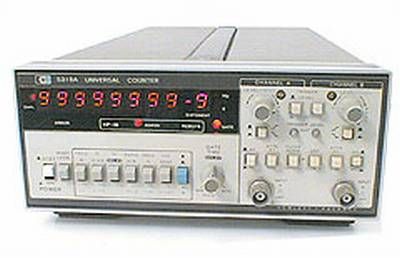

Keysight (Agilent/HP) 5316A
The HP 5316 A is a fast 100 MHz counter with an eight-digit LED display. The unit operates using the reciprocal counting method - this provides a resolution of 7 digits/second in the frequency range from 1 Hz to 100 MHz! Frequency range: 0 to 100 MHz Both input channels have a sensitivity of up to 10 mV. Selectable AC or DC coupling. Trigger level adjustable between +2.5 V and -2.5 V DC. 1 MOhm input impedance. In addition to frequency measurement, periods, time intervals, and ratios can also be measured. Event counting up to 100 MHz is also possible, HP-IB interface. Universal counter 1 Hz - 100 MHz
Product variants:
-
Keysight (Agilent/HP) 5316A -
Keysight (Agilent/HP) 5316A
