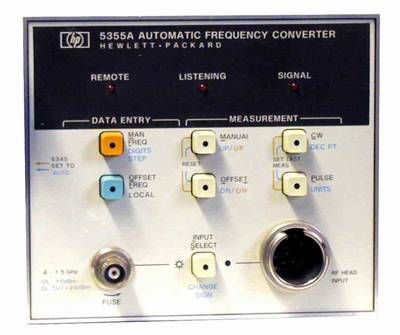

Keysight (Agilent/HP) 5355A
For use with the HP 5345 A basic unit, allows the frequency range to be extended up to 110 GHz when a separate measuring head is connected. Frequency range of the plug-in unit 400 MHz to 1.6 GHz, sensitivity -15 dBm, maximum input signal +5 dBm, maximum permissible level +24 dBm peak, pulse width 150 ns to 1 s, pulse repetition frequency 100 Hz to 2 MHz, impedance 50 ohms nominal. FREQUENCY CONVERTER PLUG-IN 400 MHz - 1.6 GHz
Product variants:
-
Keysight (Agilent/HP) 5355A
