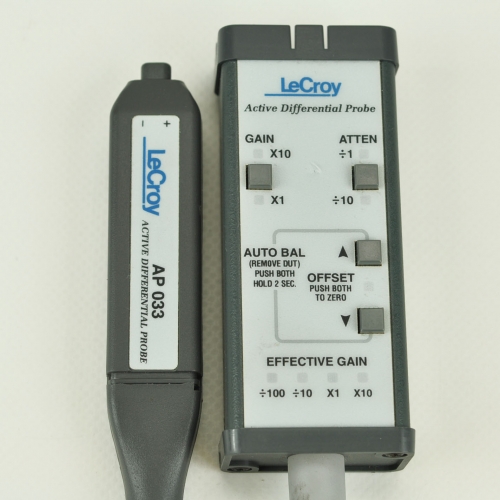

LeCroy AP033
Fully integrated: With the ProBus™ interface, the AP033 becomes an integral part of the oscilloscope. Probe sensitivity and offset can be controlled from the oscilloscope front panel, the probe front panel, or by using remote control commands (GPIB or RS-232). Sensitivity, offset, input capacitance, and common-mode voltage range are displayed on the oscilloscope screen. When used with a LeCroy digital oscilloscope, no external power supply is required. Wide dynamic range: The AP033 provides a range of sensitivities from x10 gain to ÷10 attenuation (even ÷100 with plug-on attenuator) for diverse signals. Sensitivity can be adjusted continuously from 200 µV/div to 1 V/div when used with a LeCroy oscilloscope. At high sensitivities, x10 gain and ÷1 attenuation are selected. This produces 4 nV/√Hz input noise, ±5 V of common-mode voltage range (CMVR), and ±400 mV of DC differential offset. At lower sensitivities, x1 gain and ÷10 attenuation are selected, resulting in ±50 V CMVR and ±4 V of differential offset. Input capacitance is just 2 pF/side (1 pF differential) whenever ÷10 attenuation is selected. Deflection factors of 2 mV/div to 1 V/div can be obtained with only 2 pF/side input capacitance and ±50 V CMVR. ACTIVE DIFFERENTIAL PROBE 500 MHz
Product variants:
-
LeCroy AP033
