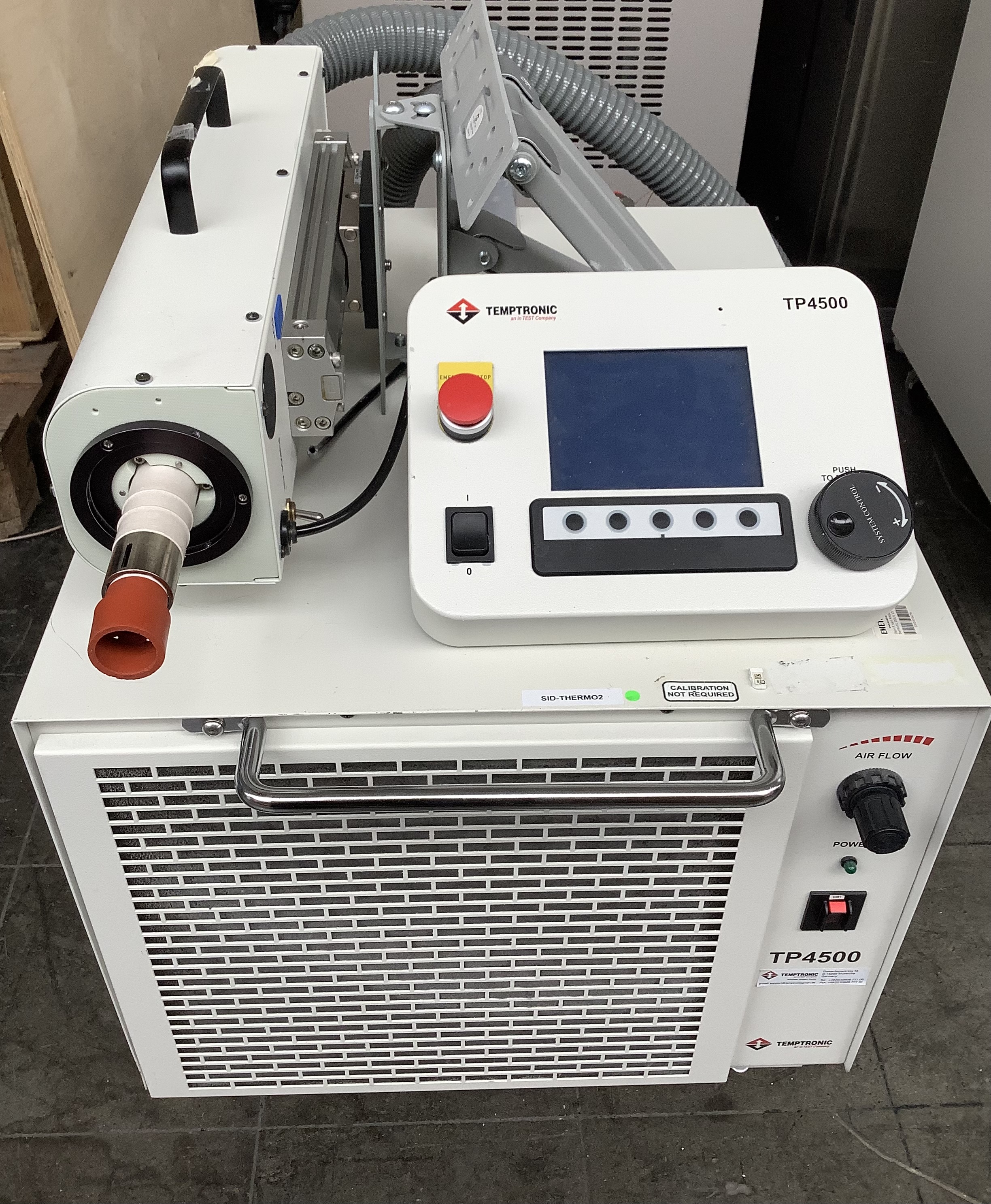

Temptronic TP4500A71
The compact footprint and ease of use of the TP4500A system make it ideal for use in laboratories and production facilities for testing, characterization, and failure analysis of components and circuit boards to commercial/industrial specifications. For temperature cycling with fast transitions and high airflow at all temperatures, the TP4500A provides the necessary environment for rapid thermal testing of components of any size and power dissipation, from small NAND flash to larger high-power devices and circuit boards. Wide temperature range from -45 °C to +225 °C1 High, adjustable airflow (up to 10 scfm) across the full temperature range Fast temperature transitions: -40 °C to +125 °C in less than 12 seconds1 The proprietary dual-loop control regulates temperature directly at the device. 115 V and 230 V systems available. 15 A and 20 A systems available. No LN2 or CO2 required. Self-aligning glass thermal cap Thermostream system -45°C to +225°C
Product variants:
-
Temptronic TP4500A71
